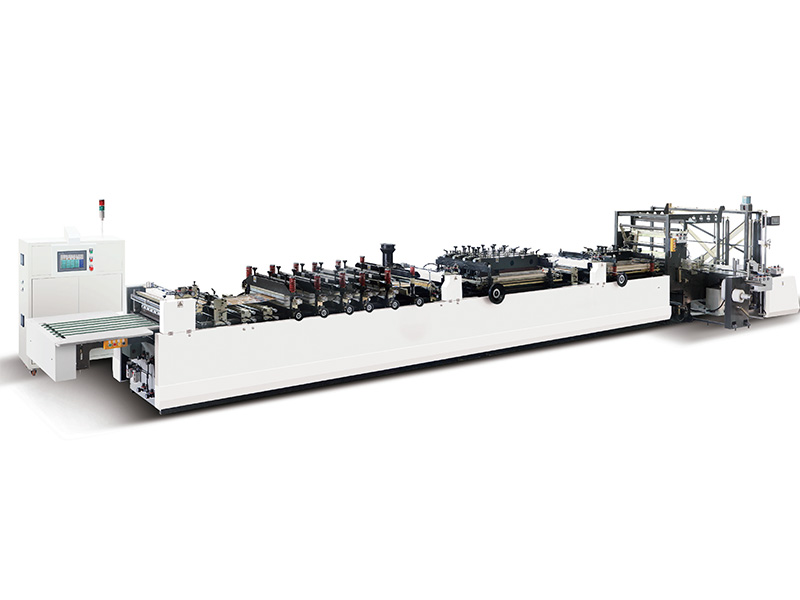

![GX-ZUD High-Speed [Three-Servo] Three-Side Sealing Zipper Standing Bag-Making Machine](data/watermark/main/20240702/6683600dcc6c0_.jpg "GX-ZUD High-Speed [Three-Servo] Three-Side Sealing Zipper Standing Bag-Making Machine")
![GX-ZUD High-Speed [Three-Servo] Three-Side Sealing Zipper Standing Bag-Making Machine](https://www.bagemachine.com/data/watermark/main/20240702/6683600dcc6c0.jpg "GX-ZUD High-Speed [Three-Servo] Three-Side Sealing Zipper Standing Bag-Making Machine")
This machine is suitable for producing two-layer or multi-layer three-side sealing laminated film pouches with zipper sealing and doy-pack making function which take BOPP, PET, CPP, PE, nylon, aluminum foil and paper as base material. With such characteristics as easy operation, smooth product, beautiful appearance, high-strength thermal edge sealing and high Bag Making speed, it is a kind of ideal equipment for packing and making pouches.
PERFORMANCE AND CHARACTERISTICS
1. Whole machine controlled by central PLC control system with man-machine. More stable performance, easy for operation and maintenance. Chinese and English interface language can be shifted easily.
2. Constant auto-tension control for unwinding, LPC edge alignment, AC inverterconstant speed auto material feeding.
3. Imported three servo-motor material dragging control system.
4. Main motor for up-down sealing and pressing equipped with inverter.
5. PID for sealing bar temperature adjustment, no touch auto control, centralized setting in man-machine interface.
6. Equipped with Pneumatic multi-function auto punching device, trim cutting andauto rewinding and static eliminator.
7. Temperature adjustment range: 0~300℃.
8. Counter: quantity, batch accumulation, pre-set available.
9. Operation Method: by length fixation control and/or by photocell tracking control.
10. Punching device: working rhythm can pre-set as continuous, interval or stop, punching time can be pre-set.
11. Material Skip Feeding: one to six times available.
12. Batch Conveying Function available, the quantity of batch can be preset.
Main Technical Variables
| Type | GX-ZUD400 | GX-ZUD600 |
| Max. Diameter of RolI Material | φ600mm | φ600mm |
| Max. Width of Roll Material | 850mm | 250mm |
| Max. Width for Accessorial Material | 160mm | 160mm |
| Max. Speed | 150 pieces/mm | 150 pieces/mm |
| Max. Mechanical Speed | Approx 35m/min | Approx 35m/min |
| Max. Bag-making Width | 600mm | 600mm |
| Bag-making Length | 50-2400mm | 50-2400mm |
| Total Power | 55Kw | 65Kw |
| Weight of Machine | 6500kg | 7500kg |
| Overall Dimension | L12500×W2300×H1870mm | L12500×W2500×H1870mm |
